Soil Permeability Test: All You Need To Know

Soil permeability significantly influences geotechnical engineering projects, from foundations to drainage systems. A thorough understanding of permeability and accurate testing methods are essential for reliable design. This guide covers everything you need to know about soil permeability tests, methods, procedures, and result interpretation.

What Is Soil Permeability and Why Is It Important?

Soil permeability refers to the ability of water or other fluids to flow through soil pores. Understanding permeability is critical for engineers and environmental scientists because it impacts:

• Drainage efficiency: Controls flooding and water management.
• Stability: Influences slope stability and earthworks.
• Environmental safety: Governs groundwater contamination risks.

What Are the Main Soil Permeability Testing Methods?

There are two primary categories of permeability tests: laboratory and field tests.

Laboratory Tests:

• Constant Head Test¹: Ideal for coarse-grained soils (sand and gravel).
• Falling Head Test²: Best suited for fine-grained soils (clay and silt).

Field Tests:

• Pump Tests³: Evaluate permeability over large soil areas.
• Borehole Tests: Quick field evaluations for localized sites.

How Do You Perform a Laboratory Permeability Test?

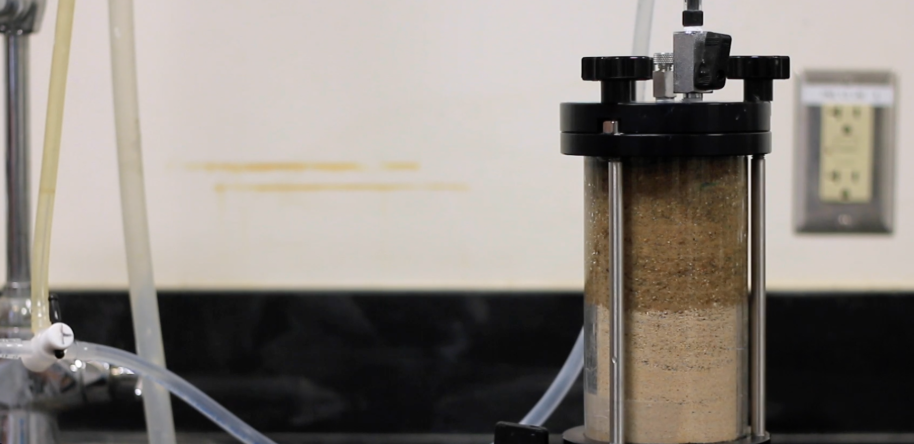

Constant Head Test Procedure:

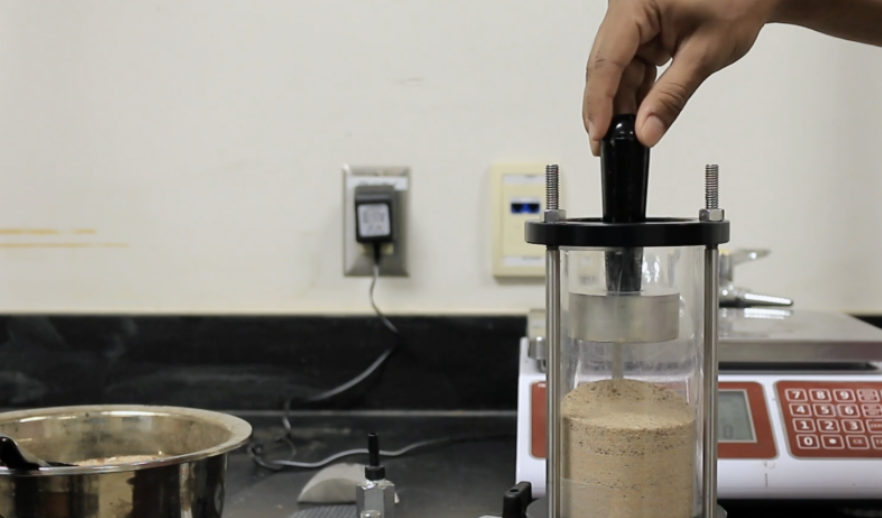

1. Prepare sample: Fill soil into permeability cell⁴ uniformly.
2. Apply water: Maintain a constant water head⁵ (pressure difference).
3. Measure outflow: Record the volume of water flowing through over time.
4. Calculate permeability (( k )) using Darcy’s Law:

[k = \frac{Q \cdot L}{A \cdot h \cdot t}]

• ( Q ): Volume of water
• ( L ): Soil sample length
• ( A ): Cross-sectional area
• ( h ): Water head difference
• ( t ): Time of flow

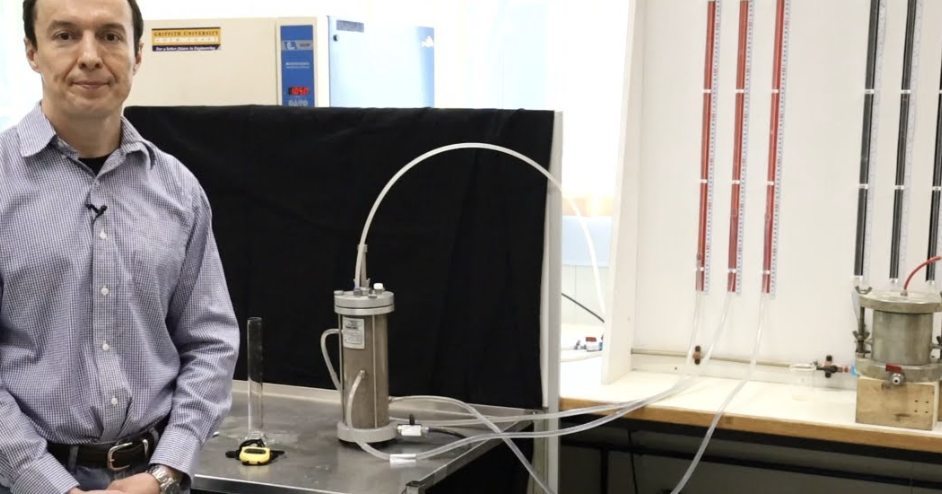

Falling Head Test Procedure:

1. Set up soil sample: Compact fine-grained soil in permeability apparatus.
2. Establish water level: Fill standpipe to initial known level.
3. Monitor fall: Record water level drop over time.
4. Calculate permeability:

[k = \frac{a \cdot L}{A \cdot t} \ln\frac{h_1}{h_2}]

• ( a ): Standpipe cross-sectional area
• ( h_1, h_2 ): Initial and final water head levels

How Are Permeability Results Interpreted in Design?

Permeability data⁶ directly informs engineering designs. Results typically classify soil into permeability categories used for various applications:

These interpretations guide decisions on:

• Drainage design⁷: Choosing appropriate drainage measures.
• Foundation stability⁸: Ensuring long-term structural safety.
• Environmental measures: Preventing contamination spread.

Conclusion

Understanding soil permeability through proper testing and interpretation is essential for safe and effective engineering solutions. By applying accurate test methods, engineers ensure that infrastructure projects are stable, efficient, and environmentally sound.
