Step-by-Step Guide: Using a Triaxial Saturator for Clay and Sand Samples

I’ve learned this the hard way: good saturation makes bad data disappear. Clay or sand—follow a calm, repeatable routine.

Quick takeaway: Prepare clean specimens, remove air with CO₂ and de-aired water, raise back pressure in steps while keeping effective stress tiny, and watch B-value. Clay needs patience; sand needs careful flow.

Let’s walk through prep, clay steps, sand differences, and why B-value rules the process.

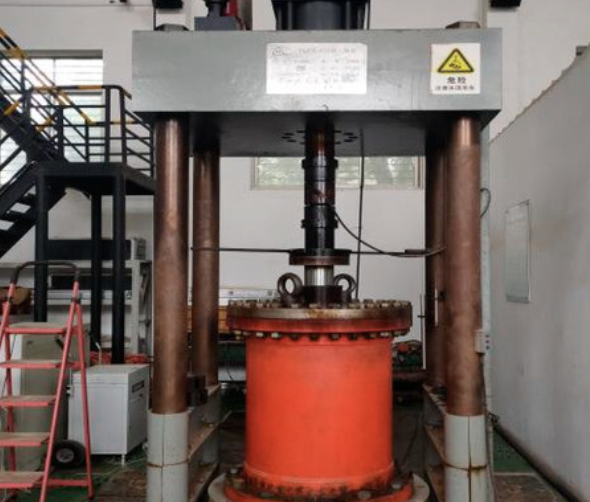

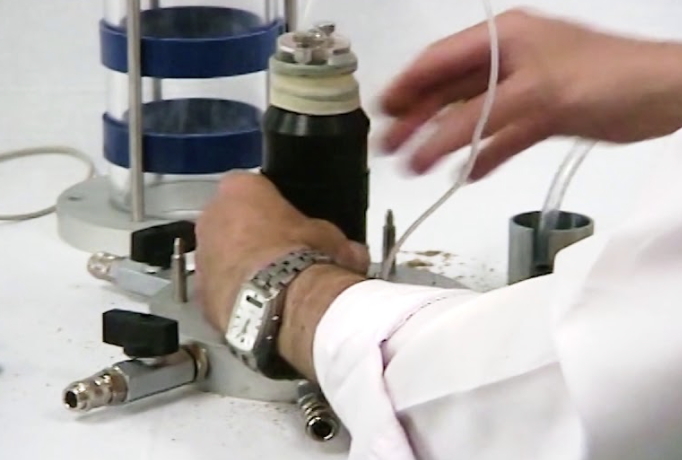

How Do You Prepare Clay and Sand Samples Before Saturation?

Good prep saves hours later. I keep it simple, clean, and the same every time.

In short: Trim true, check membranes and porous stones¹, use CO₂ + de-aired water, verify valves, and log dimensions, mass, and moisture.

I still remember a soft clay that kept “leaking” in the data. The real leak was in our routine: a tired porous stone and one careless O-ring. After we fixed both, saturation flew. Since then, I run a quiet checklist² before any back pressure. It’s boring. It works.

What to prepare (side-by-side)

Prep flow I trust

• Inspect & clean: stones, caps, lines. Porous stone care
• CO₂ flush → de-aired water: purge air from voids. De-air routine
• Membrane check: no whitening or pinholes. Seal checklist
• Plumb valves: confirm upflow path is clear. Valve map
• Low-pressure hold: 10–20 kPa for 5–10 min; watch drift. Hold script

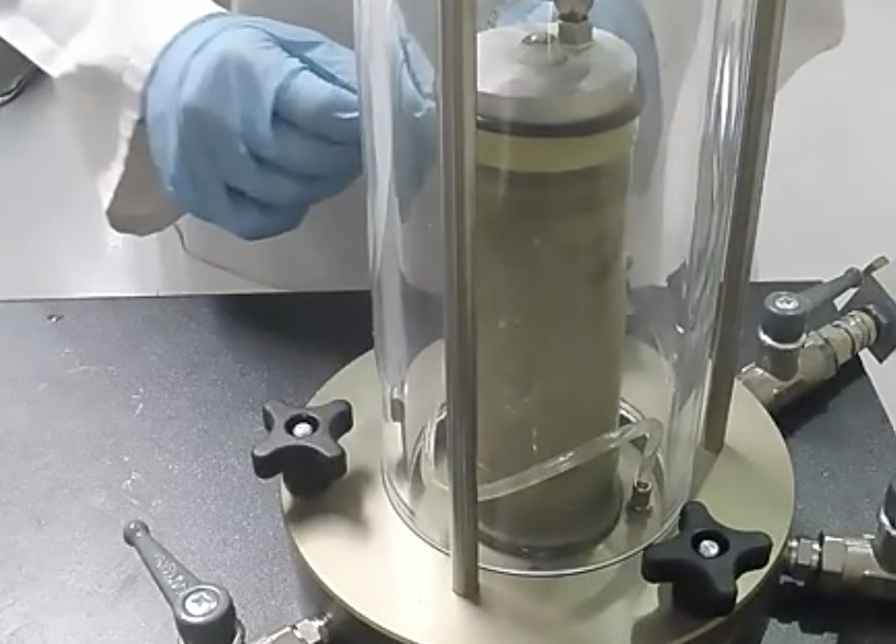

What Steps Are Involved in Saturating Clay Samples?

Clay rewards patience. Let water replace air slowly, with tiny effective stress and steady logs.

Short answer: Apply small confining pressure, introduce back pressure in steps, pause to equalize, verify B-value, then move to consolidation.

Here’s my clay rhythm: I keep effective stress near zero³ (about 2–5 kPa), add back pressure in 50–100 kPa steps, and let the specimen “breathe.” I note time-to-B and volume drift⁴ during short holds. When B ≥ 0.95 (or your lab’s target), saturation is usually trustworthy. If it stalls, I check stones, lines, and the membrane before blaming the soil.

A calm, step-by-step route

1. Seat the specimen with ~10–20 kPa cell pressure; check for leaks.
2. CO₂ then de-aired water through the specimen (slow).
3. Start back pressure at ~50–100 kPa; reduce cell pressure to keep σ′ ≈ 2–5 kPa.
4. Pause & equalize 10–30 min; log ΔV and pore pressure.
5. Increase back pressure another 50–100 kPa; repeat equalization.
6. Run B-check: apply a small cell pressure pulse; compute Δu/Δσ₃.
7. If B low, hold longer or re-flush lines; inspect stones.
8. At target B, proceed to consolidation stage.

Handy targets & notes (clay)

Tools I keep nearby: air-free burette, fine bleed valve, spare O-rings. Templates: B-ramp planner worksheet • Saturation log sheet.

How Is Sand Saturation Different from Clay?

Sand wants flow, not long waits. Think upflow, gentle gradients, and minimal air entrapment.

Bottom line: Use upward flow, maybe a brief vacuum assist, keep gradients small, and avoid pre-shearing the specimen.

With sand, I focus on pathways⁵. Trapped bubbles love dead ends. I plumb for upflow, remove high points in tubing, and—if needed—use a short vacuum step with the cell sealed, then back-fill with de-aired water. After that, I raise back pressure in smaller jumps than with clay. The goal: saturate pores⁶ without rearranging the fabric.

Sand-focused routine

• Build the specimen by pluviation or moist tamping; cap quickly.
• Upward seepage with de-aired water at low head.
• Optional gentle vacuum (system-rated) to pull residual air.
• Step back pressure in 25–50 kPa increments; keep σ′ tiny.
• Short equalization holds—sands respond faster than clays.
• B-check; aim high, but expect slightly lower B for dense sands.

Clay vs. sand: quick contrasts

Watchouts: avoid hydraulic gradients that cause piping; clamp fixtures gently to avoid membrane scuffing. References: Upflow plumbing guide • Vacuum-assist notes brief.

Why Is Monitoring B-Value Important During Saturation?

B-value tells you if pore space is water-filled. High B means your effective stress picture is real, not fiction.

Core idea: B = Δu / Δσ₃ under a small cell pressure pulse. When B is high, the specimen is fully saturated and test results are trustworthy.

I treat B like a traffic light⁷. Green (≥ 0.95)—proceed to consolidation and shearing. Yellow (0.90–0.95)—hold and re-check lines; you might scrape by, but why risk it? Red (< 0.90)—air remains; fix the process. Also, watch the trend⁸: if B climbs with each hold, you’re on track. If it stalls, suspect stones, lines, or a tiny leak at the cap.

Simple B-check routine

1. Apply a small Δσ₃ (e.g., +20 kPa).
2. Record immediate Δu.
3. Compute B = Δu/Δσ₃.
4. Repeat to confirm stability.

Target bands & actions

Pro tips: log time-to-B, hold drift, and a photo of valve settings. Future you will thank you. Quick tools: B-tracker template • Pulse test card one-pager.

Conclusion

Keep saturation slow, steady, and logged; clay needs patience, sand needs flow—B-value tells you when to move on.
