ASTM D4767 Explained: How Does Stress Path Impact Triaxial Test Outcomes?

ASTM D4767 is a cornerstone standard for the Consolidated Undrained (CU) Triaxial Compression Test used on saturated cohesive soils. A critical factor in this test is the stress path—the trajectory of stress conditions that a soil specimen experiences during loading. Understanding the stress path is key to interpreting test outcomes and applying the results to real-world geotechnical designs.

Overview of ASTM D4767

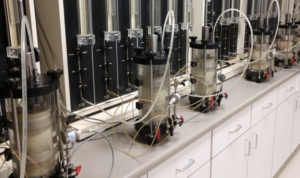

ASTM D4767 outlines a standardized procedure for measuring the shear strength¹ and deformation behavior of cohesive soils under controlled undrained conditions². The test involves:

• Consolidation: Isotropically consolidating a cylindrical soil sample under a specified confining pressure.
• Undrained Shear: Applying an axial load at a controlled strain rate while preventing drainage.
• Data Collection: Recording axial load, deformation, and pore water pressure throughout the test.

This method provides critical information about both the total stress (undrained) and effective stress responses, forming the basis for determining shear strength parameters such as undrained shear strength (sᵤ), cohesion (c), and friction angle (φ).

Defining Stress Path in a Triaxial Test

The stress path refers to the evolution of stress states that a soil sample follows during the triaxial test. It is typically represented on a Mohr-Coulomb diagram³ or a p–q plot, illustrating:

• Initial Consolidation: The specimen is consolidated under a uniform confining pressure (σ₃).
• Axial Loading: The axial load increases, and the specimen’s major principal stress (σ₁) rises, while the confining pressure remains constant.
• Deviator Stress Development: The difference (σ₁ – σ₃) evolves as the soil deforms, while pore water pressure changes are recorded.

A well-defined stress path is crucial because it determines how the soil’s internal structure rearranges and influences the measured strength and deformation properties.

How Stress Path Influences Test Outcomes

The stress path has a direct impact on the results of a triaxial test:

• Shear Strength Determination: The manner in which deviator stress and pore pressure evolve affects the calculated undrained shear strength (sᵤ)⁴. For instance, a steeper stress path may result in higher peak deviator stress but also generate greater pore pressures, reducing effective stress.
• Deformation Behavior: Different stress paths can lead to strain-hardening or strain-softening responses. This behavior influences the shape of the stress–strain curve⁵, critical for interpreting soil stiffness and post-peak performance.
• Failure Mode and Mechanism: The evolution of stress along the chosen path can affect where and how the soil fails—whether by a distinct shear plane or through a more diffuse failure mode.
• Effective Stress Analysis: Correctly capturing the stress path allows engineers to convert total stress measurements into effective stress parameters⁶, which are essential for long-term stability analysis and design.

Table 1: Impact of Stress Path on Test Outcomes

Best Practices for Controlling and Analyzing Stress Path

To ensure consistent and reliable triaxial test results, follow these best practices:

1. Calibrate Equipment Rigorously: Regularly calibrate load cells, displacement transducers, and pore pressure sensors using certified standards.
2. Control the Loading Rate: Set the axial strain rate based on the soil’s consolidation characteristics (e.g., using t₅₀ values) to achieve a balanced stress path.
3. Ensure Consistent Sample Preparation: Prepare and saturate specimens uniformly to reduce variability in stress path behavior.
4. Monitor Data in Real-Time: Use high-frequency data acquisition systems to capture the complete evolution of the stress path. Plotting the data on Mohr or p–q diagrams helps visualize the test progression.
5. Document Test Conditions: Record all test parameters, including initial specimen conditions and environmental factors, to facilitate accurate interpretation and replication.

Conclusion

Understanding the stress path in triaxial testing is crucial for accurately determining soil strength and deformation characteristics. ASTM D4767⁷ provides a robust framework for these tests, and by meticulously controlling and analyzing the stress path, engineers can derive reliable undrained and effective stress parameters⁸. This, in turn, ensures safe, efficient, and economical geotechnical designs, bridging the gap between laboratory testing and field performance.
