What Equipment Is Used for Soil Compaction Test?

Soil compaction tests are critical for ensuring the proper density and strength of soils in construction, agriculture, and environmental projects. Various pieces of equipment, each with its unique advantages, are used in the laboratory and field to assess soil compaction. In this article, we discuss some of the most common methods and instruments for soil compaction testing.

Proctor Test Apparatus: Establishing Optimum Moisture Content

The Proctor Test Apparatus¹ is the cornerstone of laboratory soil compaction testing. This apparatus is used to determine the optimum moisture content and maximum dry density of a soil sample. The procedure, often called the Proctor compaction test, involves:

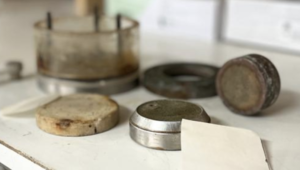

• Compaction Molds and Hammers: A standard cylindrical mold is filled with soil at various moisture contents and compacted using a hammer with a fixed weight and drop height.
• Moisture Content Analysis: After compaction, the soil sample is dried in an oven to determine its moisture content.
• Density Calculation: By plotting dry density against moisture content, the optimum moisture content² is identified at the peak of the curve.

This test is essential because it ensures that the soil reaches its maximum density, which is crucial for stability in construction projects.

Nuclear Density Gauge: Precision Field Measurements

The Nuclear Density Gauge³ is a popular field instrument used for on-site compaction testing. It utilizes gamma radiation to measure the in-situ density of soils. Key features include:

• Non-Destructive Testing⁴: The gauge allows for quick, non-invasive measurements without disturbing the soil structure.
• High Accuracy: Provides precise readings of soil density and moisture content simultaneously.
• Rapid Results: Ideal for large-scale projects where many test points are required quickly.

This instrument is widely used in road construction and earthwork projects, ensuring that the compaction meets specified standards.

Sand Cone Method: Classic In-Situ Testing

The Sand Cone Method⁵ is a classic and reliable in-situ test⁶ for determining soil density. The process involves:

• Excavation of a Small Hole: A hole is carefully excavated in the soil using a standard template.
• Sand Filling: The excavated volume is filled with calibrated sand through a cone apparatus.
• Volume Calculation: By weighing the sand needed to fill the hole, the volume of the excavation is determined.
• Density Calculation: The in-situ density is calculated by dividing the mass of the excavated soil by the volume determined from the sand.

Despite being labor-intensive compared to nuclear gauges, the sand cone method remains popular due to its low cost and simplicity.

Dynamic Cone Penetrometer (DCP): Rapid Subsurface Assessment

The Dynamic Cone Penetrometer (DCP) is used for rapid assessment of soil compaction and strength⁷, particularly in field conditions. Its advantages include:

• Quick Execution: By repeatedly striking a cone into the ground with a hammer, the DCP measures the penetration rate.
• Correlation to Soil Density: The penetration resistance⁸ is directly correlated with soil compaction and strength, making it a useful indirect measure.
• Portability: Lightweight and easy to transport, the DCP is ideal for preliminary site assessments and for mapping variations in subsurface compaction.

The DCP is especially useful in heterogeneous soils or where quick assessments are needed to guide further detailed testing.

Conclusion

Soil compaction testing is vital to ensuring safe and durable construction, efficient agricultural practices, and proper environmental management. Instruments like the Proctor Test Apparatus provide detailed laboratory insights into optimum moisture content and dry density, while field instruments such as the Nuclear Density Gauge and Sand Cone Method offer practical, on-site measurements. For rapid assessments, the Dynamic Cone Penetrometer delivers quick and effective results. By selecting the appropriate equipment and testing method, engineers and technicians can ensure that soil compaction meets project specifications, ultimately contributing to safer and more sustainable infrastructure development.
