Selecting a latex membrane for a triaxial test requires more than matching a nominal specimen diameter.
The membrane must fit the specimen, extend over the pedestal and top cap, remain sealed throughout the expected deformation and provide a suitable balance between flexibility and puncture resistance.
The main dimensions are:
- Inside diameter
- Finished length
- Wall thickness
A suitable membrane also depends on:
- Actual specimen dimensions
- Pedestal and top-cap geometry
- O-ring positions
- Expected axial strain
- Soil strength
- Particle size
- Specimen surface condition
- Cell pressure
- Test duration
- Membrane material
- Installation method
- Applicable correction procedure
A membrane that is too large can wrinkle. One that is too small can be overstretched or tear during installation. A membrane that is unnecessarily thick can exert additional restraint, while a very thin membrane may be vulnerable to puncture.
This guide provides a practical selection process without assuming that one diameter or thickness is correct for every laboratory.
Important: Membrane selection must comply with the applicable ASTM, ISO, BS or other laboratory procedure. Dimensions and example values in this article should not replace the current test standard, equipment instructions or a laboratory’s validated method.
The Three Dimensions You Must Specify
A tubular triaxial membrane is normally defined by:
| Dimension | What it controls |
|---|---|
| Inside diameter | Fit around the specimen |
| Finished length | Coverage of the specimen and end-sealing areas |
| Wall thickness | Flexibility, durability and mechanical influence |
| Dimensional tolerance | Variation between actual and nominal dimensions |
All four factors should be reviewed together.
For example, a membrane may have the correct nominal diameter but still be unsuitable if:
- Its actual diameter is outside the required tolerance
- It is too short for the end seals
- Its thickness produces excessive restraint
- Its wall is not sufficiently uniform
- It cannot tolerate the specimen surface
- It is difficult to mount using the available stretcher
Information to Collect Before Choosing a Membrane
Before selecting or ordering a membrane, collect the following information.
Specimen Information
- Actual specimen diameter
- Specimen height
- Soil type
- Particle-size range
- Surface roughness
- Presence of projecting particles
- Expected specimen deformation
- Whether the specimen is intact, remolded or reconstituted
Apparatus Information
- Pedestal diameter
- Top-cap diameter
- Pedestal sealing length
- Top-cap sealing length
- O-ring locations
- O-ring dimensions
- Membrane-stretcher dimensions
- Triaxial cell clearance
- Expected loading-ram movement
Test Information
- Test type
- Cell-pressure range
- Back-pressure range, if applicable
- Expected axial strain
- Test duration
- Drainage conditions
- Fluid exposure
- Temperature
- Required measurement accuracy
- Applicable membrane correction
Purchasing Information
- Required quantity
- Nominal dimensions
- Dimensional tolerances
- Material
- Surface treatment
- Color or transparency
- Packaging
- Batch documentation
- Special inspection requirements
If these details are unavailable, the membrane should not be selected from specimen diameter alone.

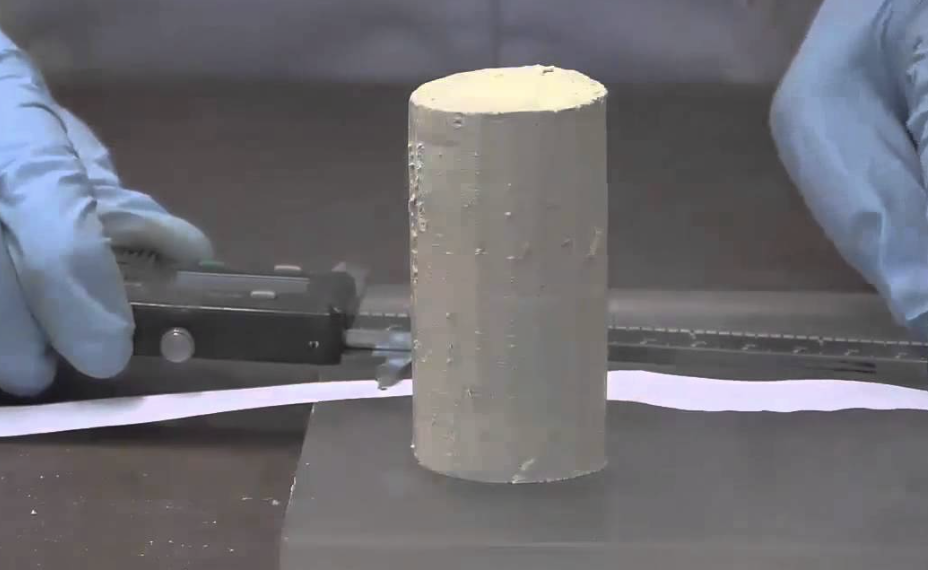

Step 1: Measure the Actual Specimen Diameter
Use the specimen diameter required by the applicable test procedure.
Do not rely only on a nominal label such as:
- 38 mm specimen
- 50 mm specimen
- 70 mm specimen
- 100 mm specimen
- 150 mm specimen
Actual specimens can vary because of:
- Sampling
- Trimming
- Remolding
- Compaction
- Swelling
- Moisture condition
- Damage during preparation
- Measurement method
Record the actual diameter at the required locations and calculate the representative value according to the applicable method.
The membrane selection should be compatible with that measured specimen—not simply the nominal mold or tube size.
Step 2: Select the Membrane Inside Diameter
The membrane inside diameter must allow installation without excessive looseness or damaging expansion.
If the Membrane Is Too Large
Possible problems include:
- Wrinkles
- Longitudinal folds
- Uneven contact
- Membrane trapped beneath an O-ring
- Inconsistent boundary conditions
- Difficulty obtaining a reliable seal
- Localized membrane effects
If the Membrane Is Too Small
Possible problems include:
- Difficult installation
- Excessive stretching
- Local wall thinning
- Tearing during mounting
- Slipping from the stretcher
- Disturbance of soft specimens
- Excessive force near the end seals
Do Not Apply a Universal Stretch Percentage
A fixed rule such as “the membrane must stretch by 2–5%” should not be treated as universally valid.
Acceptable installation stretch can depend on:
- Membrane formulation
- Wall thickness
- Diameter tolerance
- Specimen strength
- Stretcher design
- Surface treatment
- Temperature
- Laboratory procedure
If your laboratory uses a target diameter relationship, it should be supported by:
- The applicable standard
- Equipment instructions
- Manufacturer data
- Laboratory validation
- Documented test experience
Step 3: Check Pedestal and Top-Cap Compatibility
The membrane must fit not only the specimen but also the components at both ends.
Measure or confirm:
- Pedestal outside diameter
- Top-cap outside diameter
- O-ring groove geometry
- Sealing-surface length
- Transition from specimen to end component
A membrane may fit the soil specimen but be difficult to seal if the pedestal or top cap has a significantly different diameter.
Check for:
- Sharp transitions
- Damaged edges
- Rough sealing surfaces
- Incorrect O-ring size
- Insufficient membrane overlap
- Membrane folds beneath the seal
Repeated tearing at the same end often indicates a component or sealing issue rather than an incorrect specimen diameter.
Step 4: Determine the Required Membrane Length
The finished membrane length must cover:
- The full specimen height
- The lower sealing area
- The upper sealing area
- Any required transition over the pedestal and top cap
- Additional movement expected during specimen deformation
A practical length assessment should consider:
- Specimen height
- Pedestal overlap
- Top-cap overlap
- O-ring positions
- Number of O-rings
- Membrane-stretcher arrangement
- Expected axial shortening
- Expected specimen bulging
- Loading-ram movement
- Assembly tolerances
Why a Universal Extra-Length Rule Is Unsafe
Rules such as “always add 10–15 mm at each end” may be inadequate for one apparatus and excessive for another.
The required overlap depends on actual component geometry.
Instead, calculate or measure the required finished length from the complete assembly, then add only the allowance supported by your sealing method and validated procedure.
If the Membrane Is Too Short
Possible consequences include:
- Insufficient overlap
- O-ring installed too close to the membrane edge
- Membrane pulling away during loading
- End-seal leakage
- Local overstretching
- Test termination
If the Membrane Is Too Long
Possible consequences include:
- Excess material near the ends
- Folds beneath O-rings
- Difficult positioning
- Interference with drainage components
- Inconsistent sealing
Step 5: Select the Wall Thickness
Wall thickness affects:
- Flexibility
- Puncture resistance
- Tear resistance
- Ease of installation
- Local thinning during stretching
- Membrane restraint
- Potential correction magnitude
- Long-duration durability
Thickness should not be selected from soil type alone.
Thin vs Thick Triaxial Membranes
| Characteristic | Relatively thin membrane | Relatively thick membrane |
|---|---|---|
| Flexibility | Generally higher | Generally lower |
| Conformability | Generally easier | May require more installation force |
| Membrane restraint | Usually lower | Potentially higher |
| Puncture resistance | Potentially lower | Potentially higher |
| Sensitivity to sharp particles | Higher | May be lower |
| Installation damage risk | Can be higher | Material-dependent |
| Influence on soft specimens | Usually lower | Potentially more significant |
| Correction requirement | Evaluate | Often more important to evaluate |
This comparison is relative. Actual performance depends on material formulation and dimensions.
A 0.635 mm membrane made from one formulation may not behave exactly like a membrane of the same nominal thickness made from another formulation.
Common Nominal Thicknesses
Available products may include nominal thicknesses such as:
| Nominal thickness | Approximate inch equivalent |
|---|---|
| 0.30 mm | 0.0118 in |
| 0.635 mm | 0.0250 in |
| 1.00 mm | 0.0394 in |
| 2.00 mm | 0.0787 in |
These are unit conversions—not universal recommendations.
The website menu and product data should use the correct conversion:
2.00 mm ≈ 0.0787 in, not 0.787 in.
Before publishing a product thickness, verify:
- Nominal value
- Manufacturing tolerance
- Measurement method
- Measurement location
- Unit conversion
- Product labeling
Why Specimen Diameter Changes the Thickness Decision
The mechanical influence of a membrane depends partly on specimen size.
The same wall thickness may represent a relatively larger boundary component on a small specimen than on a large specimen.
Potential membrane influence should therefore be considered in relation to:
- Specimen diameter
- Soil strength
- Membrane stiffness
- Axial strain
- Radial deformation
- Confining pressure
- End restraint
A thickness used successfully on a large specimen should not automatically be transferred to a smaller specimen without evaluation.
Step 6: Consider the Soil Surface
The specimen surface can affect puncture risk and local membrane deformation.
Soft Cohesive Specimens
Key concerns include:
- Disturbance during mounting
- Excess membrane restraint
- Damage caused by the stretcher
- Nonuniform specimen diameter
- End-seal pressure
A highly durable but very thick membrane is not automatically appropriate for a soft specimen because its stiffness may become more significant.
Fine-Grained Remolded Specimens
These specimens may have relatively smooth surfaces, but the membrane should still be checked for:
- Correct fit
- Wrinkles
- Trapped material
- Surface contamination
- End-seal damage

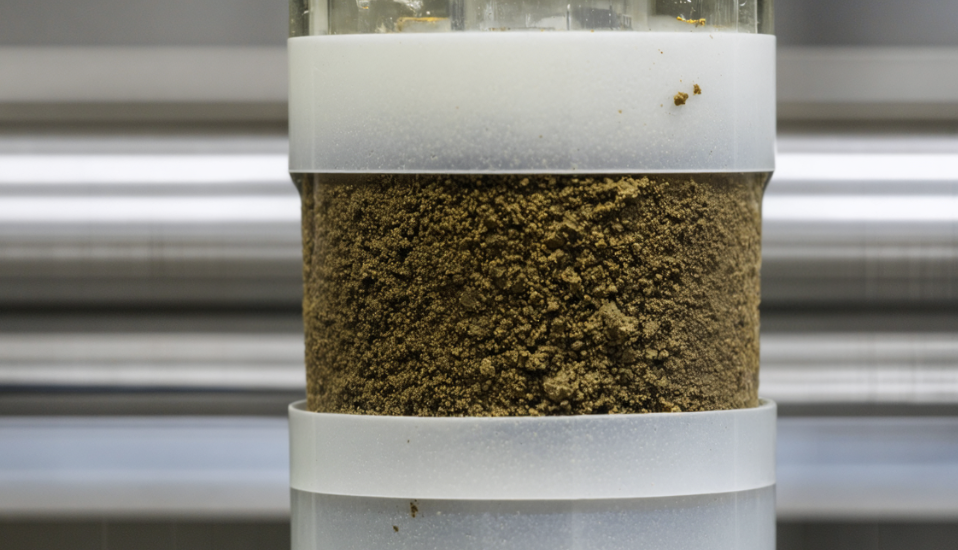

Sandy or Silty Specimens
Potential concerns include:
- Surface instability
- Local particle movement
- Puncture
- Membrane penetration
- Difficulty maintaining specimen shape during mounting
The specimen-preparation method and any supporting technique must follow the applicable procedure.
Coarse or Irregular Specimens
Potential concerns include:
- Projecting particles
- Large surface voids
- Local membrane stretching
- Puncture
- Membrane penetration
- Nonuniform boundary effects
Simply selecting a thicker membrane may not solve all these problems. Specimen preparation, particle-size requirements, correction methods and the suitability of the test procedure must also be reviewed.
Do Not Assign Thickness From Soil Type Alone
The following type of recommendation should be avoided unless supported by validated data:
- Soft clay always requires 0.3 mm
- Sand always requires 0.5 mm
- Gravel always requires 0.8 mm
Thickness selection should consider the combination of:
- Soil strength
- Surface roughness
- Particle size
- Specimen diameter
- Cell pressure
- Expected strain
- Test duration
- Required accuracy
- Membrane stiffness
- Correction procedure
A soil description alone is insufficient.
Step 7: Consider Cell Pressure
Cell pressure affects the force acting against the specimen boundary and may influence:
- Membrane penetration
- Contact with surface voids
- Local stress around projecting particles
- Leakage consequences
- End-seal stability
Do not assume that a thicker membrane is automatically a “high-pressure membrane.”
Pressure suitability depends on the complete system:
- Membrane material
- Wall thickness
- Diameter
- Installation stretch
- End seals
- Triaxial cell
- Pedestal and top cap
- Test duration
- Temperature
- Specimen surface
Claims such as “suitable above 1000 kPa” should only be published if supported by a defined test method and verified product data.
Step 8: Consider Expected Axial Strain
During compression, the specimen shortens and may expand laterally.
The membrane must accommodate:
- Axial shortening
- Lateral expansion
- Local bulging
- Movement near the top cap
- Movement near the pedestal
If expected strain is high, check:
- Available membrane length
- End overlap
- O-ring security
- Material extension
- Local wall thinning
- Potential restraint
- Membrane-to-specimen fit
Do not evaluate axial strain independently from radial deformation.
Step 9: Consider Test Duration
A membrane used in a short UU test may face different risks from one used in a long CU or CD test.
Long-duration considerations include:
- Slow leakage
- Aging
- Creep
- Seal movement
- Temperature changes
- Chemical exposure
- Water absorption
- Dimensional stability
For long tests, inspect the membrane and sealing system carefully and use storage-controlled products with suitable batch traceability.
Step 10: Consider Test Type
| Test type | Important membrane considerations |
|---|---|
| UU | Reliable installation, undrained isolation and resistance to immediate damage |
| CU | Integrity during saturation, back pressure, consolidation and undrained shearing |
| CD | Long-duration sealing and accurate drainage or volume-change measurement |
| Flexible-wall permeability | Chemical compatibility, leakage control and stable specimen isolation |
| Large-specimen testing | Diameter uniformity, installation method, wall consistency and custom tooling |
The membrane’s basic function remains similar, but the consequences of leakage differ.
Step 11: Evaluate Membrane Restraint
The membrane is flexible but not mechanically neutral.
As the specimen expands, the membrane can resist deformation. The possible influence depends on:
- Membrane thickness
- Material stiffness
- Specimen diameter
- Soil strength
- Axial strain
- Radial deformation
- End restraint
This effect may be more important for:
- Soft soils
- Small specimens
- Thick membranes
- Low confining stress
- Large deformation
If a correction is required, document:
- Correction source
- Membrane properties
- Specimen dimensions
- Variables
- Units
- Assumptions
- Calculation method
Do not apply a correction derived for a different material or thickness without confirming its applicability.
Step 12: Evaluate Membrane Penetration
Membrane penetration occurs when cell pressure pushes the flexible membrane into surface voids.
It can affect:
- Volume-change measurements
- Consolidation interpretation
- Radial deformation
- Corrected dimensions
- Stress–strain results
Penetration may be more significant for specimens with:
- Coarse particles
- Large surface voids
- Irregular surfaces
- High cell pressure
Changing thickness can affect penetration behavior, but thickness alone does not eliminate it.
Step 13: Verify the Membrane Stretcher
A correct membrane can still fail if the mounting tool is unsuitable.
Check:
- Stretcher inside diameter
- Stretcher length
- Vacuum connection
- Internal surface
- Edge condition
- Cleanliness
- Ability to release the membrane evenly
Potential stretcher-related failures include:
- Edge cuts
- Excessive expansion
- Uneven stretching
- Local thinning
- Membrane slipping
- Damage during removal
The stretcher should match the specimen and membrane system.
Step 14: Verify O-Ring Compatibility
O-rings must seal the membrane without cutting it.
Check:
- O-ring inside diameter
- Cross-section
- Material condition
- Surface damage
- Pedestal fit
- Top-cap fit
- Groove position
- Number of seals
- Installation method
A larger or stronger O-ring is not automatically better. Excessive sealing force can damage the membrane or specimen.
Practical Membrane Selection Worksheet
Complete this table before placing an order.
| Required information | Your value |
|---|---|
| Test type | [Enter UU, CU, CD or other] |
| Applicable standard | [Enter standard and revision] |
| Specimen diameter | [Enter measured or nominal value] |
| Specimen height | [Enter value] |
| Pedestal diameter | [Enter value] |
| Top-cap diameter | [Enter value] |
| Lower sealing length | [Enter value] |
| Upper sealing length | [Enter value] |
| Expected axial strain | [Enter value or range] |
| Cell-pressure range | [Enter value and unit] |
| Test duration | [Enter value] |
| Soil type | [Enter description] |
| Maximum particle size | [Enter value] |
| Surface condition | [Smooth, rough, irregular or other] |
| Fluid exposure | [Enter fluid] |
| Temperature range | [Enter range] |
| Requested inside diameter | [Enter value] |
| Requested finished length | [Enter value] |
| Requested thickness | [Enter value] |
| Diameter tolerance | [Enter if required] |
| Thickness tolerance | [Enter if required] |
| Quantity | [Enter quantity] |
| Packaging requirement | [Enter details] |
Example Selection Process
The following is a process example, not a product recommendation.
A laboratory has a cylindrical specimen and needs to select a tubular membrane.
Step A: Confirm the Specimen
The laboratory records:
- Actual specimen diameter
- Actual specimen height
- Surface condition
- Maximum particle size
- Expected deformation
Step B: Measure the End Components
The laboratory measures:
- Pedestal diameter
- Top-cap diameter
- O-ring positions
- Required sealing overlap
Step C: Review the Test
The laboratory identifies:
- Test type
- Cell-pressure range
- Test duration
- Drainage conditions
- Required accuracy
Step D: Review Candidate Membranes
For each candidate, it checks:
- Actual inside diameter
- Finished length
- Nominal thickness
- Tolerances
- Material
- Inspection records
- Stretcher compatibility
Step E: Validate
Before adopting the membrane for routine testing, the laboratory confirms:
- Installation can be completed without disturbing the specimen
- End seals remain secure
- No unacceptable folds develop
- The membrane remains intact
- Applicable corrections are understood
- Results meet the laboratory’s repeatability and quality requirements
This process is more reliable than selecting thickness only from a soil-name chart.
Incoming Inspection
Before use, inspect the membrane for:
- Correct product identification
- Correct dimensions
- Pinholes
- Cuts
- Tears
- Cracks
- Thin spots
- Thick deposits
- Embedded contamination
- Sticky areas
- Brittle areas
- Edge damage
- Packaging damage
If required, record:
- Supplier
- Batch number
- Nominal diameter
- Measured diameter
- Nominal thickness
- Measured thickness
- Inspection result
- Rejection reason
[Insert original image: Membrane diameter and thickness inspection.]
Common Selection Mistakes
Choosing Only by Nominal Specimen Diameter
This ignores pedestal, top-cap, tolerance and installation requirements.
Assuming One Thickness Fits Every Soil
Soil strength, particle size, surface texture, pressure and specimen diameter all matter.
Selecting the Thickest Available Membrane
Greater thickness may improve handling durability but can increase restraint.
Selecting the Thinnest Available Membrane
Lower restraint does not help if the membrane punctures or tears during installation.
Ignoring Finished Length
A correct diameter does not compensate for insufficient end overlap.
Ignoring Dimensional Tolerance
Actual membrane dimensions may vary around the nominal value.
Ignoring the Mounting Tool
The stretcher and membrane must work as a system.
Publishing Unsupported Pressure Ratings
A pressure claim requires a defined test setup, sealing configuration and acceptance criterion.
Treating Transparent Membranes as More Accurate
Transparency may improve visibility, but it does not automatically improve dimensional consistency, sealing or test accuracy.
Specialized and Custom Membranes
Custom production may be appropriate for:
- Large-diameter specimens
- Nonstandard specimen heights
- Unusual pedestal geometry
- Special wall thickness
- Transparent membranes
- Custom surface treatment
- Tapered membranes
- Stepped geometry
- Closed-end shapes
- Research equipment
A custom request should include a drawing.
Do not specify only:
“Membrane for a 100 mm triaxial test.”
Instead provide:
- Actual required inside diameter
- Finished length
- Thickness
- Tolerances
- End geometry
- Application
- Pressure
- Deformation
- Quantity
- Packaging requirements
Frequently Asked Questions
Should the membrane diameter equal the specimen diameter?
Not necessarily.
The appropriate relationship depends on actual dimensions, material, tolerance and mounting procedure. It should be close enough to avoid folds without requiring damaging installation strain.
How much should a latex membrane stretch during installation?
There is no universal percentage suitable for every membrane and specimen.
Use a value supported by the applicable method, manufacturer information or laboratory validation.
How much extra membrane length is required?
The answer depends on specimen height, pedestal, top cap, O-ring locations, overlap and expected deformation.
A universal extra-length value should not replace measurement of the complete assembly.
What is the best thickness for soft clay?
There is no single thickness based on soil name alone.
For a soft specimen, consider membrane restraint, puncture risk, specimen diameter, pressure, deformation and the laboratory’s correction method.
What is the best thickness for gravel?
Before selecting a membrane, confirm that the test method and specimen size are suitable for the particle size.
Coarse surfaces may increase puncture and penetration risks, but simply choosing a thicker membrane may not solve those problems.
Is a thicker membrane suitable for higher pressure?
Not automatically.
Pressure suitability depends on the membrane, diameter, installation stretch, end seals, apparatus, specimen surface, duration and temperature.
Does membrane thickness affect test results?
It can. A membrane may resist specimen deformation, particularly for soft soils, small specimens or relatively thick membranes.
Can one membrane size be used for different specimen diameters?
Only if the fit and performance have been validated for each diameter. Excessive looseness or stretching can create different problems.
What dimensions should I send to a supplier?
At minimum, provide specimen diameter, specimen height, required membrane inside diameter, finished length, thickness, pressure range and quantity.
For custom work, provide the complete component drawing and tolerances.
Conclusion
Selecting a triaxial latex membrane requires a systematic review of:
- Specimen diameter
- Specimen height
- Pedestal and top-cap dimensions
- O-ring positions
- Required sealing overlap
- Membrane inside diameter
- Finished length
- Wall thickness
- Dimensional tolerances
- Soil strength
- Particle size
- Surface condition
- Cell pressure
- Expected strain
- Test duration
- Material compatibility
- Membrane restraint
- Membrane penetration
- Stretcher compatibility
Do not select a membrane using an unsupported universal stretch percentage, fixed extra length or soil-only thickness chart.
A reliable selection is based on the actual specimen, apparatus, test conditions and verified membrane specifications.
Discuss Your Triaxial Membrane Dimensions
Need help identifying a standard or custom membrane?
Send us:
- Specimen diameter
- Specimen height
- Pedestal diameter
- Top-cap diameter
- Required sealing overlap
- Preferred thickness
- Cell-pressure range
- Expected strain
- Soil surface condition
- Test duration
- Equipment model
- Required quantity
- Dimensional drawing, if available
We can review your dimensional requirements and available manufacturing options.
[Button: Discuss Your Triaxial Membrane Dimensions]
